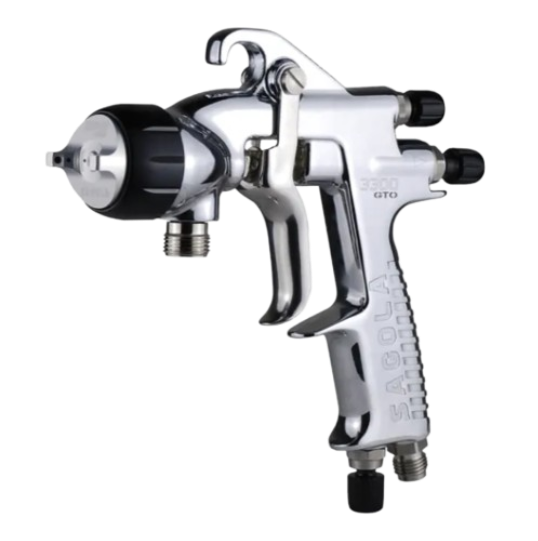

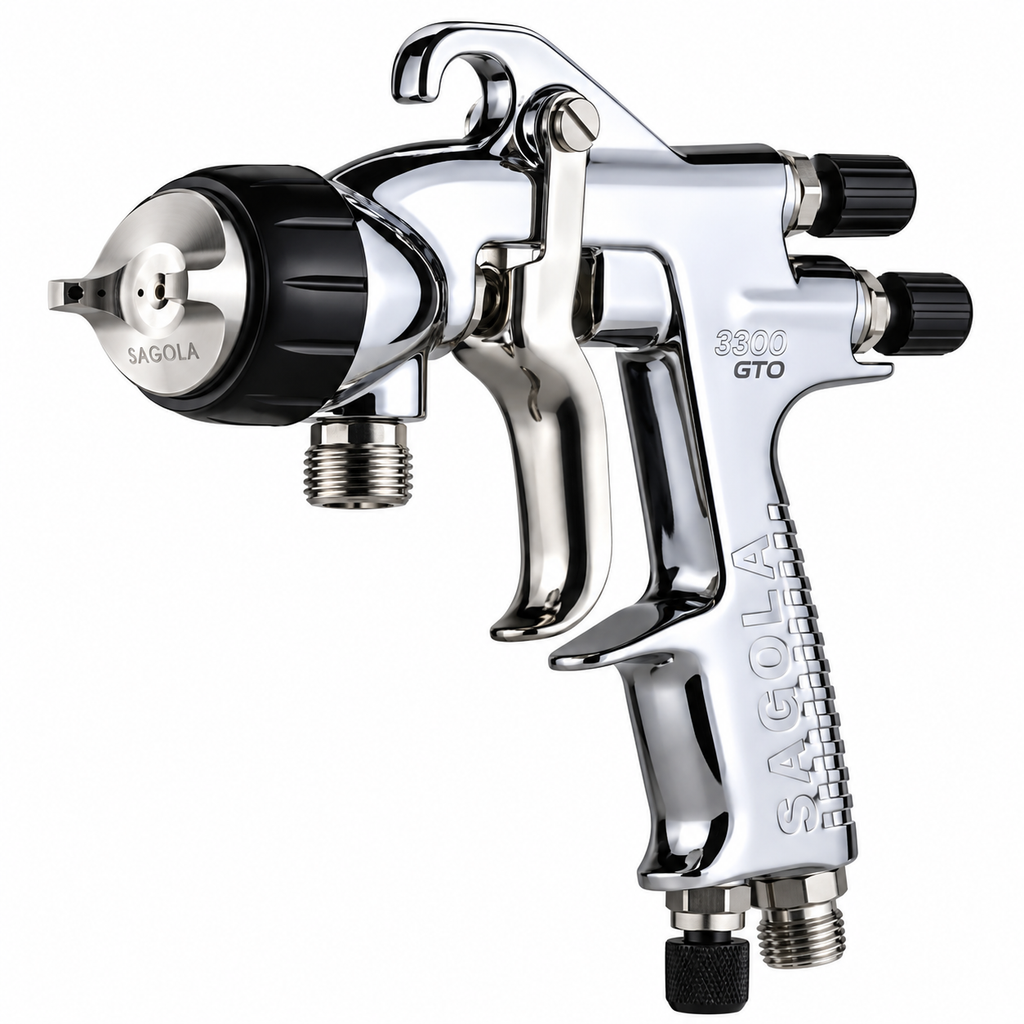

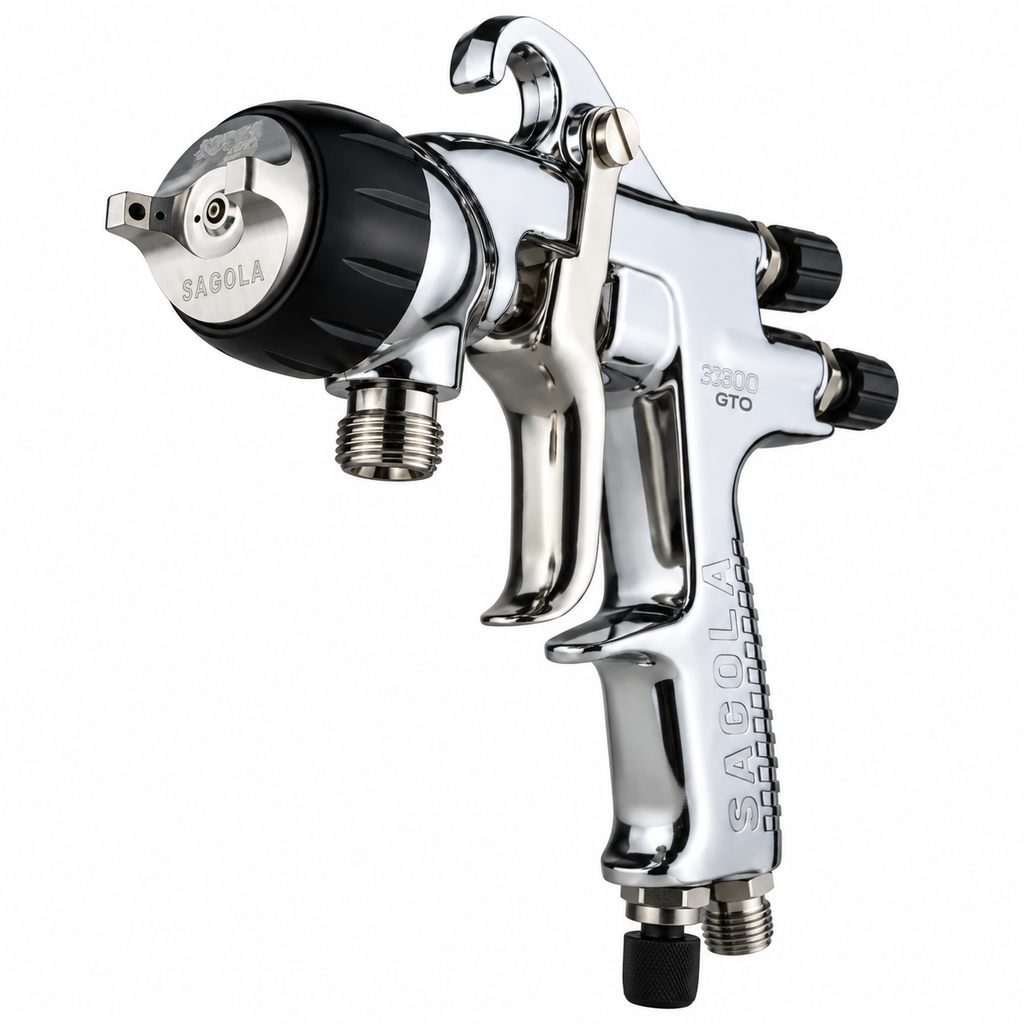

Sagola 3300 GTO Pressure Spray Gun
Sagola 3300 GTO Pressure Spray Gun
Sagola 3300 GTO Pressure Spray Gun
The Sagola 3300 GTO Pressure Spray Gun is designed for professional pressure-fed coating applications where consistent atomization, dependable performance, and operator comfort are essential. Its ergonomic, streamlined design provides comfortable handling while delivering the precision and finish quality expected from Sagola spray equipment.
Built for professional and industrial finishing environments, the 3300 GTO combines durable construction with straightforward maintenance and interchangeable components, making it a versatile choice for demanding spray applications.
Key Features
- Professional Pressure-Fed Spray Gun: Designed for use with pressure-fed coating systems.
- Consistent Atomization: Engineered to produce uniform spray patterns and high-quality finishes.
- Ergonomic Design: Balanced construction provides comfortable handling during extended spraying.
- Interchangeable Components: Designed for convenient configuration, service, and maintenance.
- Low Maintenance: Durable construction helps reduce downtime and simplify routine servicing.
- Professional Sagola Quality: Built for reliable performance in demanding finishing environments.
Additional Information

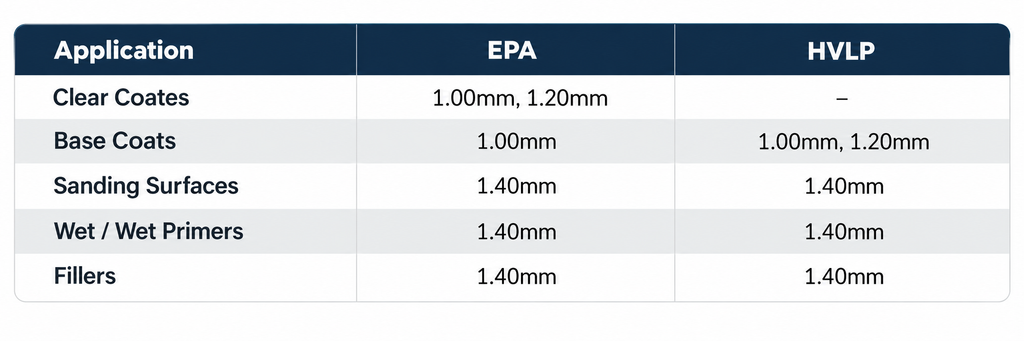

| Application | EPA | HVLP |
| Clear Coates | 1.00mm, 1.20mm | – |
| Base Coats | 1.00mm | 1.00mm, 1.20mm |
| Sanding Surfacers | 1.40mm | 1.40mm |
| Wet / Wet Primers | 1.40mm | 1.40mm |
| Fillers | 1.40mm | 1.40mm |
Additional Information
| Weight | N/A |
|---|---|
| Air Cap |
EPA Air Cap, HVLP Air Cap |
| Needle/Nozzle |
1.00mm, 1.20mm, 1.40mm |
| Dimensions |
178.18 x 19 x 175.5mm (7.01 x 0.75 x 6.91”) |
| Weight |
474g (1.04lbs) |
| Air Inlet Coupling |
6.35mm (1/4”) Male BSP |
| Product Inlet Coupling |
9.5mm (3/8”) Male BSP |
| Working Pressure |
2 – 3bar (29 – 43.5psi) |
| Compliance |
ATEX II 2G x (Directive 2014/34/EU) |
| Packing List |
Sagola 3300 GTO Pressure Spray Gun with aircap, needle & nozzle kit (supplied fitted), Hexagonal Wrench & Cleaning Brush |
